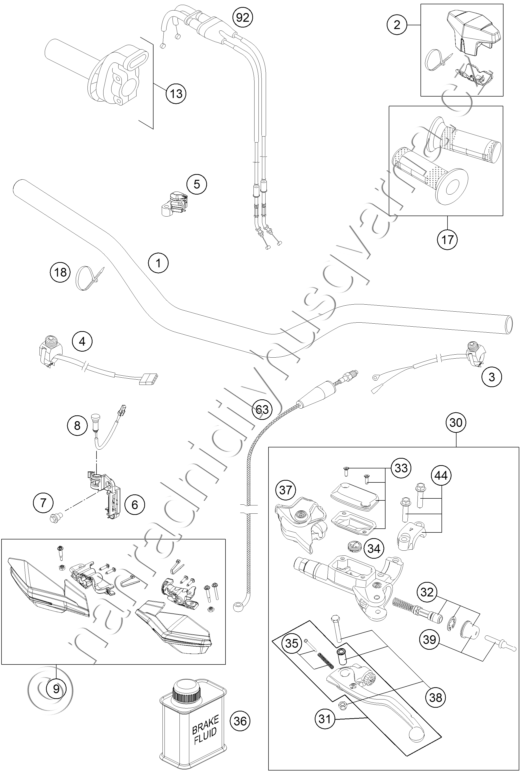

Díly pro HANDLEBAR, CONTROLS
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 7770200110030 HANDLEBAR BLACK |
2 819 Kč | |
| 2 | 80302602044 BAR PAD CPL. |
570 Kč | |
| 3 | 50311089200 SHORT CIRCUIT BUTTON 02 |
626 Kč | |
| 4 | 78111074000 STARTER BUTTON GREY 13 |
703 Kč | |
| 5 | 77239974200 MAP SWITCH |
2 603 Kč | |
| 6 | 77214098000 HOLDER INDICATOR LIGHT SX |
60 Kč | |
| 7 | 59001092050 SPECIAL SCREW M6X12,5 WS=8 |
29 Kč | |
| 8 | 81214083000 INDICATOR LIGHT LED YELLOW FI |
501 Kč | |
| 9 | 79602084044 HANDGUARD ASSEMBLY KIT |
446 Kč | |
| 13 | 78102010100 THROTTLE GRIP CPL. |
1 137 Kč | |
| 17 | 80302021000 GRIP SET BLACK/WHITE |
517 Kč | |
| 18 | 44011076140 CABLE TIE 140/2,5MM BLACK |
10 Kč | |
| 18 | 44011076200 CABLE TIE 200/3,6MM BLACK |
10 Kč | |
| 30 | 54802030144 MASTER CYLINDER CPL. |
4 509 Kč | |
| 31 | 54802031000 CLUTCH LEVER CPL. BREMBO 06 |
836 Kč | |
| 32 | 54802032000 REP. KIT PISTON 06 |
831 Kč | |
| 33 | 5480200310030 COVER HYD. CLUTCH CPL. 2014 |
605 Kč | |
| 34 | 54802051000 VALVE |
318 Kč | |
| 35 | 54802052000 BOLT KPL. |
533 Kč | |
| 36 | 00062030000 BRAKE FLUID DOT5.1 0,25L |
358 Kč | |
| 37 | 54802037000 PROTECTION CAP 06 |
370 Kč | |
| 38 | 54802038100 LEVER SCREW CPL. 06 |
521 Kč | |
| 39 | 54802046000 PUSH ROD CPL. |
414 Kč | |
| 44 | 54802005100 CLAMP CPL. 06 |
405 Kč | |
| 63 | 54832063000 CLUTCH PIPE 06 |
1 761 Kč | |
| 92 | 78102091100 THROTTLE CABLE 4T. |
1 286 Kč |
