Díly pro LUBRICATING SYSTEM

Číslo dílu
na schématu
Kód dílu
Název dílu
Cena za kus
vč. DPH
Doporučený
počet
1 77238102000
OIL PUMP SHAFT
558 Kč
2 59038011112
OILPUMP ROTOR-SET 12MM CPL.
708 Kč
3 61238111000
ROTOR-SET CPL. 22MM
1 041 Kč
4 77038001100
OIL PUMP GEAR 14T 08
86 Kč
5 78038004000
OIL PUMP COVER SUCTION PUMP
456 Kč
6 77238003100
OIL PUMP COVER R/S
196 Kč
7 0025060166
HH COLLAR SCREW M6X16 TX30
28 Kč
8 0984050123S
CYLIND. SCR. DIN6912 M5X12 8.8
17 Kč
9 77238061050
AXIAL-CIRCLIP
42 Kč
11 77338041200
OIL FILTER COVER 08
223 Kč
12 77338005100
OIL FILTER
198 Kč
14 0402251980
NEEDLEROL.DIN5402 NRA 2,5X19,8
20 Kč
15 0402251180
NEEDLE ROLLER DIN5402 2,5X11,8
19 Kč
16 0402041580
NEEDLE ROLLER NRB 4X15.8 G2
36 Kč
17 77038006100
OILPUMP IDLER GEAR 08
127 Kč
18 0988121805
SHIM WASHER DIN0988-12X18X0,50
21 Kč
19 0471120010
RETAINING RING DIN 471 12X1
4 Kč
20 07703305178
O-RING 33,05X1,78
42 Kč
21 59038017100
PLUG M20X1,5 WS=13
252 Kč
22 59038016100
OIL SCREEN
278 Kč
23 07701250151
O-RING 12,5X1,5 VITON V75
76 Kč
24 0770020170
O-RING 17,17X1,78 GLO
18 Kč
25 58038007755
STOP DISK 8,1 X 15 X 0,5
21 Kč
26 0799060000
TAB WASHER DIN6799-RS 6,0
17 Kč
28 0770440020
O-RING 44,00X2,00 VITON
50 Kč
29 0984050163S
CYL. SCREW DIN6912 M5X16 8.8
17 Kč
30 0018050103
INT. TORX OVAL HEAD M 5X10 8.8
23 Kč
31 77038013100
BUSHING PIN
129 Kč
32 77038022000
OIL INTAKEPIPE
116 Kč
41 0401090003
BALL DIN5401-9
33 Kč
42 58038023300
PRESSURE SPRING L=25MM D=1MM
66 Kč
43 58038022000
CU-SEAL RING DIN7603-12X18X1,5
28 Kč
44 0908120153
THREADED PLUG DIN 908 M12X1.5
87 Kč
45 0770110015
O-RING 1,5x11 SILICON
57 Kč
46 78036081000
HOLDING BOLT M14X1,5
87 Kč
98 00050000083
OILFILTER-GASKET SET 350 SX-F
419 Kč

Další schémata

CLUTCH CLUTCH CLUTCH COVER CLUTCH COVER COOLING SYSTEM COOLING SYSTEM CRANKSHAFT, PISTON CRANKSHAFT, PISTON CYLINDER CYLINDER CYLINDER HEAD CYLINDER HEAD ELECTRIC STARTER ELECTRIC STARTER ENGINE CASE ENGINE CASE IGNITION SYSTEM IGNITION SYSTEM LUBRICATING SYSTEM LUBRICATING SYSTEM SHIFTING MECHANISM SHIFTING MECHANISM THROTTLE BODY THROTTLE BODY TIMING DRIVE TIMING DRIVE TRANSMISSION I - MAIN SHAFT TRANSMISSION I - MAIN SHAFT TRANSMISSION II - COUNTERSHAFT TRANSMISSION II - COUNTERSHAFT VALVE DRIVE VALVE DRIVE

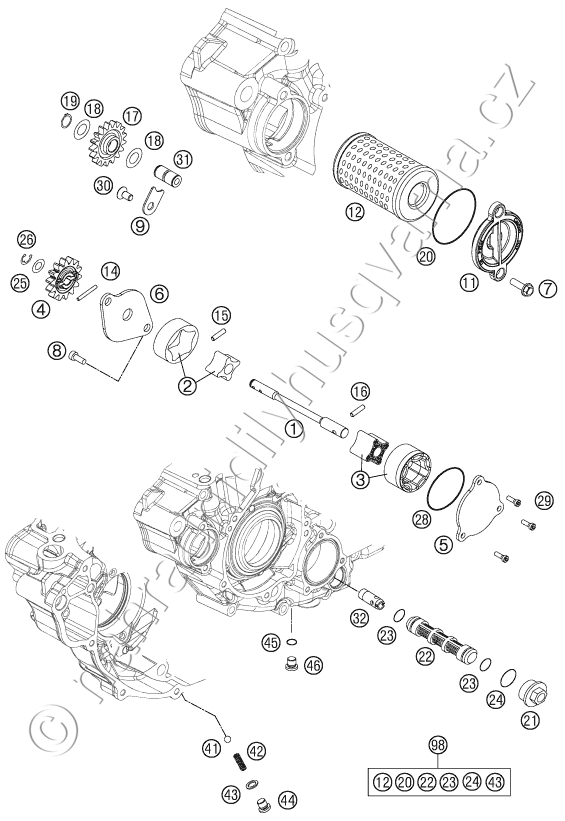

LUBRICATING SYSTEM

Zvětšit schéma LUBRICATING SYSTEM
LUBRICATING SYSTEM
