SULKAR - Oficiální zastoupení Husqvarna

Díly pro PRO LEVER LINKING

Číslo dílu
na schématu
Kód dílu
Název dílu
Cena za kus
vč. DPH
Doporučený
počet
1 7770408004401
TRIANGLE LEVER CPL. SX 2014
6 064 Kč
2 7770408304401
PULL ROD CPL. SX 15
4 592 Kč
3 79004084000
BOLT TIE-ROD BEARING M14X1,5
940 Kč
4 54603097000
NEEDLE BUSH HK 2016
221 Kč
5 59033080000
SHIM 20X32X1
41 Kč
6 0760253270
RADIAL SHAFT SEAL 25X32X7
60 Kč
7 77204080130
BUCKET SHAFT SEAL RING 25X11
203 Kč
8 54603081000
BUSHING SLEEVE 15 X 20 X 48
406 Kč
9 50180604
SHIM D29,75 X D19 X T0,4 08
44 Kč
10 0760243050
SHAFT SEAL RING 24X30X5
53 Kč
11 77204080020
BUCKET FOR SHAFT SEAL RING
150 Kč
12 77204085000
BOLT FOR CANTILEVER M14
834 Kč
13 77204087000
HEX NUT M14X1.5 WS17
55 Kč
14 77204080010
BEARING SLEEVE 10X18X25,5
135 Kč
15 0618182416
NEEDLE BUSH HN1816 RS 18/24/16
206 Kč
16 79004084010
BEARING SLEEVE F. TIE-ROD 16
416 Kč
17 0618222820
NEEDLE BEARING HK2220 22X28X20
198 Kč
18 0760222841
SHAFT SEAL RING G22x28x4
49 Kč
19 54603090010
STEEL WASHER 15,2X19X0,1
45 Kč
19 54603090020
STEEL WASHER 15,2X19X0,2
45 Kč
19 54603090030
STEEL WASHER 15,2X19X0,3
45 Kč
97 77204080110
TRIANGLE LEVER REP. KIT REAR
1 161 Kč
98 77204080090
TRIANGLE LEVER REP. KIT FRONT
776 Kč
99 77204083010
PULL ROD REP. KIT SX/SX-F
776 Kč

Další schémata

AIR FILTER AIR FILTER DECAL DECAL EXHAUST SYSTEM EXHAUST SYSTEM FRAME FRAME FRONT BRAKE CALIPER FRONT BRAKE CALIPER FRONT BRAKE CONTROL FRONT BRAKE CONTROL FRONT FORK DISASSEMBLED FRONT FORK DISASSEMBLED FRONT FORK, TRIPLE CLAMP FRONT FORK, TRIPLE CLAMP FRONT WHEEL FRONT WHEEL HANDLEBAR, CONTROLS HANDLEBAR, CONTROLS MASK, FENDERS MASK, FENDERS PRO LEVER LINKING PRO LEVER LINKING REAR BRAKE CALIPER REAR BRAKE CALIPER REAR BRAKE CONTROL REAR BRAKE CONTROL REAR WHEEL REAR WHEEL SEPERATE ENCLOSURE SEPERATE ENCLOSURE SHOCK ABSORBER SHOCK ABSORBER SHOCK ABSORBER DISASSEMBLED SHOCK ABSORBER DISASSEMBLED SWING ARM SWING ARM TANK, SEAT, COVER TANK, SEAT, COVER WP SHIMS FOR SETTING WP SHIMS FOR SETTING

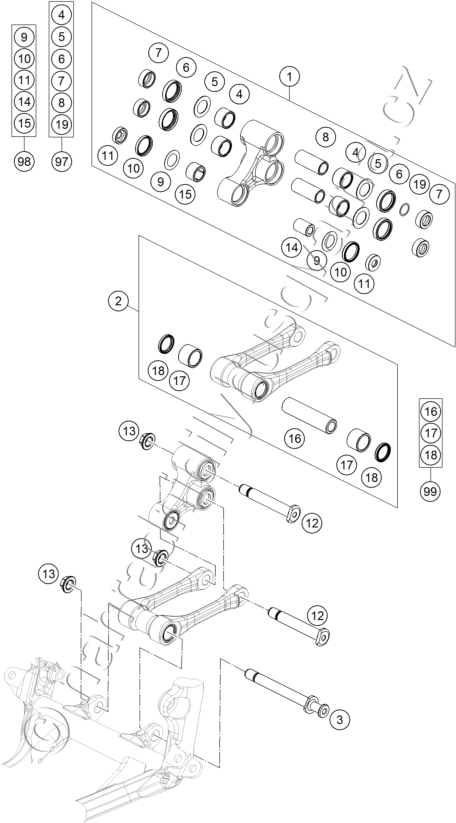

PRO LEVER LINKING

Zvětšit schéma PRO LEVER LINKING
PRO LEVER LINKING
