SULKAR - Oficiální zastoupení Husqvarna

Díly pro FRONT FORK DISASSEMBLED

Číslo dílu
na schématu
Kód dílu
Název dílu
Cena za kus
vč. DPH
Doporučený
počet
1 48601633S1
AXLE CLAMP OC R/S CPL. & TUBE
5 033 Kč
2 48601632S1
AXLE CLAMP OC L/S CPL. & TUBE
5 033 Kč
3 48600736
OUTER TUBE L577 D54/60MM 2L
8 770 Kč
4 91410099S
SPRING 3,8N/MM SET D=4,9MM
3 382 Kč
4 91410100S
SPRING 4,0N/MM SET D=4,9MM
3 382 Kč
4 91410101S
SPRING 4,2N/MM SET D=4,9MM
3 382 Kč
4 91410102S
SPRING 4,4N/MM SET D=4,9MM
3 382 Kč
4 91410103S
FORK SPRING L= 470 4,6 N/MM SET
3 382 Kč
4 91410104S
SPRING 4,8N/MM SET D=4,9MM
3 382 Kč
5 R14026
SPRING SPACER KIT
408 Kč
6 48601680S
SCREW CAP PA M51X1,5 CPL. R/S
3 193 Kč
7 48601681S
SCREW CAP PA M51X1,5 CPL. L/S
3 193 Kč
8 R14033
SCREW CAP SMALL PART KIT
395 Kč
9 48600048
O-RING NBR 46 X 2
44 Kč
10 R14046
REPAIR KIT 4860 PACK
1 812 Kč
11 R14063
FORK REP. KIT 48MM OFFROAD
1 960 Kč
12 48600763S1
PIPE&THREADED SLEEVE WITH HOLE
2 325 Kč
13 48600763S2
PIPE & THREADED SLEEVE
2 325 Kč
14 48600430
DU BUSH FOR PISTON ROD
66 Kč
15 48601554S1
ASSEMBLY COMPRESSION TAP CPL.
736 Kč
16 40540486
NUT M6X0,5 REBOUND
57 Kč
17 48600575S
PISTON REBOUND + PISTON RING
453 Kč
18 48600382
SHUTTLE VALVE SPRING C=0,4
52 Kč
19 48600576
PISTON ROD REBOUND
243 Kč
20 48600299
O-RING 6X1,2 NBR
60 Kč
21 48600578S
SPRING REBOUND + SPRING GUIDE
522 Kč
22 48601298
SPRING SUPPORT
692 Kč
23 48600277S
ADJUSTING NEEDLE CPL.
124 Kč
24 48601558S
COMPRESSION ADJ. NEEDLE CPL.
124 Kč
25 48600568
PISTON ROD D=12 L=554 ALU
1 966 Kč
26 48601786
ADJUSTING PIPE
318 Kč
27 48601556S
HYDR. STOP L200 Ă31,9 CPL.07
613 Kč
28 48600163
CHECK VALVE NUT M6X0,5 D=2
127 Kč
29 48600202
SPRING CHECK VALVE D=0,7
29 Kč
30 48600047S
PISTON + O-RING
324 Kč
31 48601553S
SCREW CAP OC SPLIT CPL.
390 Kč
32 04500003
O-RING 11X2,5 NBR 70 SH PTFE
44 Kč
98 T14034
FUCHS GREASE IPR (250G)
1 280 Kč
99 48601166S1
FORK OIL SAE4 5L
2 949 Kč

Další schémata

AIR FILTER AIR FILTER DECAL DECAL ENGINE GUARD ENGINE GUARD EXHAUST SYSTEM EXHAUST SYSTEM FRAME FRAME FRONT BRAKE CALIPER FRONT BRAKE CALIPER FRONT BRAKE CONTROL FRONT BRAKE CONTROL FRONT FORK DISASSEMBLED FRONT FORK DISASSEMBLED FRONT FORK, TRIPLE CLAMP FRONT FORK, TRIPLE CLAMP FRONT WHEEL FRONT WHEEL FUEL PUMP FUEL PUMP HANDLEBAR, CONTROLS HANDLEBAR, CONTROLS INSTRUMENTS / LOCK SYSTEM INSTRUMENTS / LOCK SYSTEM LIGHTING SYSTEM LIGHTING SYSTEM MASK, FENDERS MASK, FENDERS PRO LEVER LINKING PRO LEVER LINKING REAR BRAKE CALIPER REAR BRAKE CALIPER REAR BRAKE CONTROL REAR BRAKE CONTROL REAR WHEEL REAR WHEEL SEPERATE ENCLOSURE SEPERATE ENCLOSURE SHOCK ABSORBER SHOCK ABSORBER SHOCK ABSORBER DISASSEMBLED SHOCK ABSORBER DISASSEMBLED SIDE / CENTER STAND SIDE / CENTER STAND SWING ARM SWING ARM TANK, SEAT, COVER TANK, SEAT, COVER WIRING HARNESS WIRING HARNESS WP SHIMS FOR SETTING WP SHIMS FOR SETTING

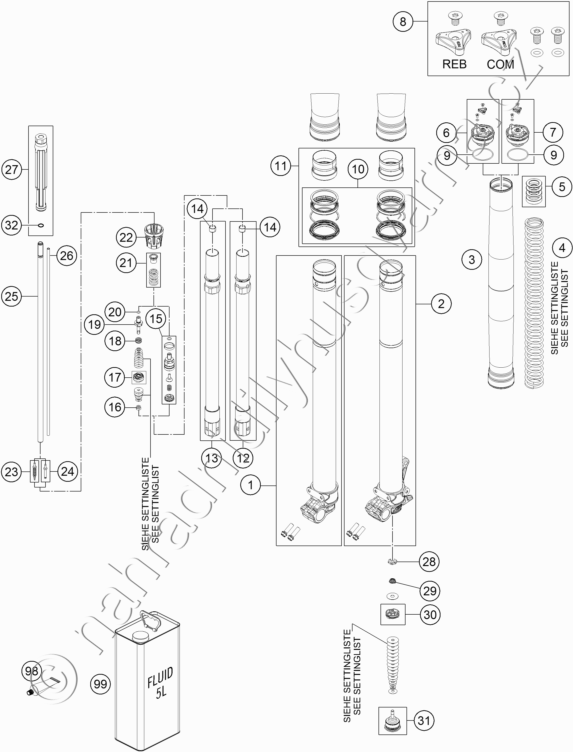

FRONT FORK DISASSEMBLED

Zvětšit schéma FRONT FORK DISASSEMBLED
FRONT FORK DISASSEMBLED
