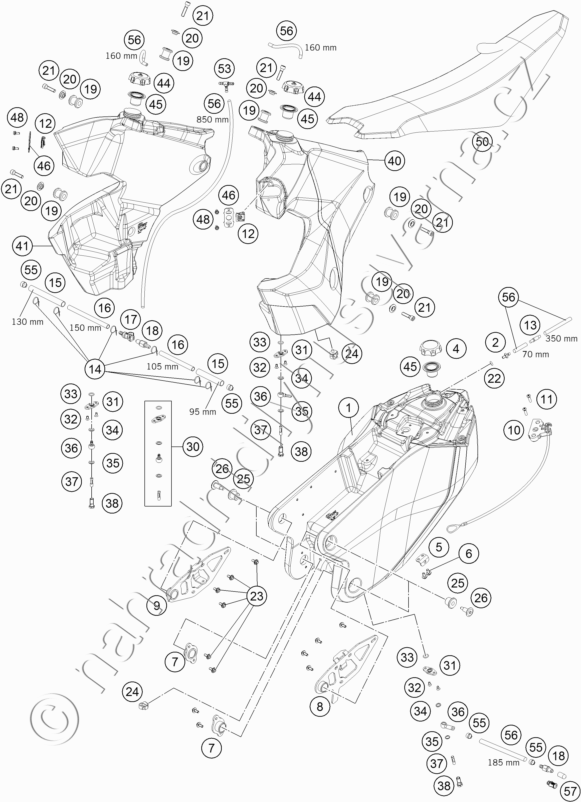

Díly pro TANK, SEAT, COVER
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 7640701500028A REARTANK WHITE |
21 119 Kč | |
| 2 | 76407029000 BLEEDER SCREW M6 |
770 Kč | |
| 4 | 76307108000 FILLER CAP TANK RALLY |
1 554 Kč | |
| 5 | 76407031000 STRAP SIDE STAND RUBBER |
368 Kč | |
| 6 | 0024060136 HH COLLAR SCREW M6X13 TX30 |
29 Kč | |
| 7 | 76407032000 STIFFENERS REARTANK CPL. |
1 339 Kč | |
| 8 | 76407027000 SUPPORT REARTANK LEFT CPL. |
2 345 Kč | |
| 9 | 76407028000 SUPPORT REARTANK RIGHT CPL. |
2 345 Kč | |
| 10 | 76407050000 SEAT LOCK |
2 623 Kč | |
| 11 | 0991060202 FLAT HEAD DIN7991-M 6X20 |
20 Kč | |
| 12 | 45007040052 CLIP |
77 Kč | |
| 13 | 57307019000 VALVE FOR TANK BREATHING 02 |
576 Kč | |
| 14 | 76311093280 CABLE TIE 280MM |
26 Kč | |
| 15 | 76407030000 HEAT PROTECTION HOSE |
1 524 Kč | |
| 16 | 58507116100 HOSE OG.ECO 1TBSE 7X13MM |
340 Kč | |
| 17 | 58507010500 CLUTCH F. FUEL HOSE CPC 03 |
1 020 Kč | |
| 18 | 5850701030030 PLUG CPC BLACK 05 |
1 020 Kč | |
| 19 | 76407061000 RUBBER BUSHING |
98 Kč | |
| 20 | 76407064000 BUSHING SLEEVE |
177 Kč | |
| 21 | 0912080303 AH SCREW DIN0912-M 8X30 |
20 Kč | |
| 22 | 0770035020 O-RING 3,5X2,00 NBR |
4 Kč | |
| 23 | 0024060156 HH COLLAR SCREW M6X15 TX30 |
29 Kč | |
| 24 | 58111076000 CABLE SUPPORT KHS NR.150-47610 |
65 Kč | |
| 25 | 76407066000 RUBB.BEAR.BOX 14X24X35 L=24,5 |
148 Kč | |
| 26 | 76407060000 BEARING SKREW |
424 Kč | |
| 30 | 58507008000 FUEL CONNECTION CPL. 01 |
666 Kč | |
| 31 | 58507008050 FUEL FLANGE SHEET 01 |
286 Kč | |
| 32 | 0991050102 FLAT H.SCEW DIN7991-M5X10 10.9 |
29 Kč | |
| 33 | 0770120020 O-RING 12,00X2,00 NBR 70 |
17 Kč | |
| 34 | 0603101420 COPPER GASKET 10,2X14X2 MM 01 |
46 Kč | |
| 35 | 42013226000 CU-SEAL RING DIN7603-10X16X1 |
28 Kč | |
| 36 | 49138493000 RING COMPONENT 10/6MM |
127 Kč | |
| 37 | 58507008010 FUEL FLANGE-STRAINER 03 |
66 Kč | |
| 38 | 58507025000 HOLLOW SCREW M10X1X24 RALLY 02 |
198 Kč | |
| 40 | 7640701300028A FUEL TANK CPL. FRONT L/S |
10 729 Kč | |
| 41 | 7640701400028A FUEL TANK CPL. FRONT R/S |
10 729 Kč | |
| 44 | 76407108000 TANK CAP |
979 Kč | |
| 45 | 59007009000 GASKET FOR FILLER CAP HIGH |
156 Kč | |
| 46 | 76407013041 CLIP HOLDING PLATE |
126 Kč | |
| 48 | 0025050126 HH COLLAR SCREW M5X12 TX30 |
36 Kč | |
| 50 | 76407040000HA SEAT RALLY CPL. |
9 691 Kč | |
| 53 | 58007015000 T-CONNECTOR FOR FUEL LINE |
198 Kč | |
| 55 | 58007117200 OETIKER HOSE CLAMP 13,3MM |
58 Kč | |
| 56 | 58507007001 HOSE 8X5MM RALLYE 03 |
Na dotaz | 0 |
| 57 | 81212016100 WASH CAP SET |
262 Kč |
