Díly pro TRANSMISSION II - COUNTERSHAFT

Číslo dílu
na schématu
Kód dílu
Název dílu
Cena za kus
vč. DPH
Doporučený
počet
1 77233010100
OUTPUT SHAFT
2 009 Kč
2 0405242812
NEDDLE BEAR. K24X28X11,9 DIV.
103 Kč
3 54833012300
IDLER GEAR 2 ND.
1 682 Kč
4 50333043000
STOP DISC 25,2X32X1
73 Kč
5 77033022000
AXIAL-CIRCLIP 25X1,65
82 Kč
6 54833014000
SLIDING GEAR 4TH G.24-T \'\'4S24\'\'
1 682 Kč
7 59033030000
STOP DISC 25,2X32X1,5
58 Kč
8 0405222613
NEEDLE BEAR. K 22X26X13 TN
132 Kč
9 54833013000
IDLER GEAR 3RD G. 24-T \'\'3S24\'\'
1 682 Kč
10 54833015100
SLIDING GEAR 5.G-21Z
1 682 Kč
11 59033080000
SHIM 20X32X1
41 Kč
12 0405202413
NEEDLE BEAR. K20X24X13
374 Kč
13 54833011200
IDLER GEAR 1 ST.
1 682 Kč
14 56033030000
STOP DISC 17,2X30X1
158 Kč
15 49030023000
CYLINDRICAL ROLLER BEARING NJ205
1 243 Kč
16 0760324571
SHAFT SEAL RING 32X45X7 BSLNBR
65 Kč
17 0770020220
O-RING 25,12X1,78 NBR70
17 Kč
18 78133014000
SPACER SLEEVE COUNTER
414 Kč
19 79233029013
SPROCKET 13T
360 Kč
19 79233029014
SPROCKET 14T
360 Kč
20 59033034044
SCREW 10.9+SPRING WASHER
94 Kč
21 0625062035
BALL BEARING 6203 JR2 C3
215 Kč
22 75030085000
RETAINING PLATE F. CS BEARING
86 Kč
23 0019050121S
INT. TORX FLAT HEAD M5X12 T25
28 Kč
24 0471170015
CIRCLIP DIN 0471-17X1, 5
21 Kč

Další schémata

BALANCER SHAFT BALANCER SHAFT CLUTCH CLUTCH CLUTCH COVER CLUTCH COVER COOLING SYSTEM COOLING SYSTEM CRANKSHAFT, PISTON CRANKSHAFT, PISTON CYLINDER CYLINDER CYLINDER HEAD CYLINDER HEAD ELECTRIC STARTER ELECTRIC STARTER ENGINE CASE ENGINE CASE IGNITION SYSTEM IGNITION SYSTEM LUBRICATING SYSTEM LUBRICATING SYSTEM SHIFTING MECHANISM SHIFTING MECHANISM THROTTLE BODY THROTTLE BODY TIMING DRIVE TIMING DRIVE TRANSMISSION I - MAIN SHAFT TRANSMISSION I - MAIN SHAFT TRANSMISSION II - COUNTERSHAFT TRANSMISSION II - COUNTERSHAFT VALVE DRIVE VALVE DRIVE WATER PUMP WATER PUMP

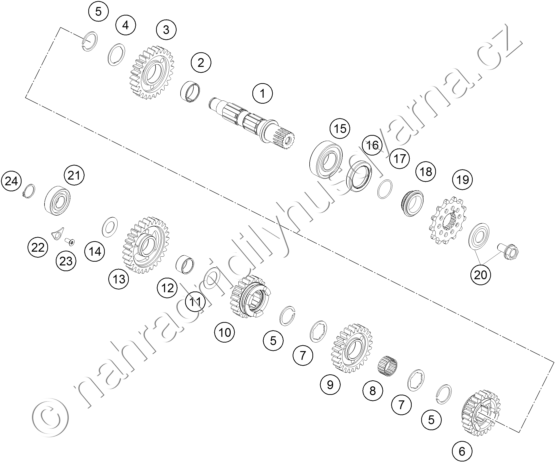

TRANSMISSION II - COUNTERSHAFT
