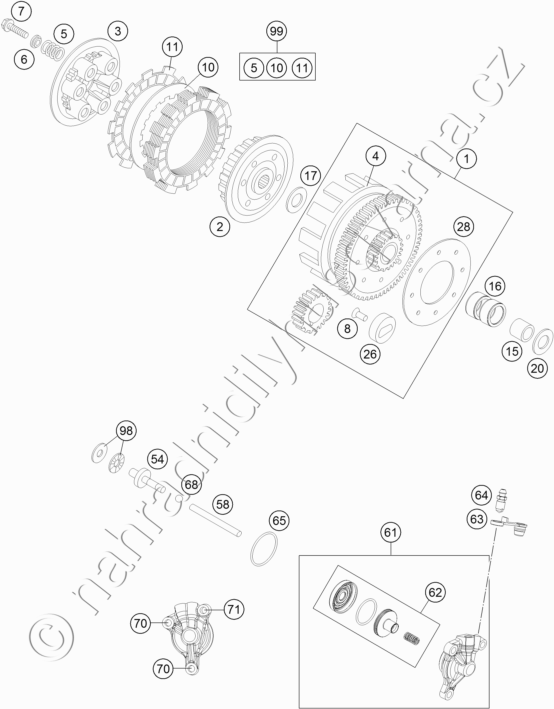

Díly pro CLUTCH
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 47032001244 OUTER CLUTCH HUB CPL. 85 SX 13 |
7 307 Kč | |
| 2 | 47032002000 INNER CLUTCH HUB 85 SX 2003 |
2 652 Kč | |
| 3 | 47032003000 PRESSURE CAP 85 SX 2003 |
1 424 Kč | |
| 4 | 47032001100 OUT. CLUTCH HUB LOOSE 85 SX 07 |
1 278 Kč | |
| 5 | 47032005000 CLUTCH SPRING 85 SX 2003 |
49 Kč | |
| 6 | 47032006000 SPRING RETAIN. 5,1X10,2X15X2,5 |
262 Kč | |
| 7 | 0025050206 HH COLLAR SCREW M5X20 TX30 |
20 Kč | |
| 8 | 47032008000 RIVET DIN0661 5X14 |
25 Kč | |
| 10 | 47032010000 STEEL DISC 85 SX 03 |
122 Kč | |
| 11 | 47032011000 LINING DISC 85 SX 2003 |
390 Kč | |
| 15 | 47032015000 BUSHING 20X25X20,5 |
441 Kč | |
| 16 | 0405252910 NEEDLE BEAR K 25X29X10 |
134 Kč | |
| 17 | 47032017000 SUPPORT WASHER 18,5X35X1,5 03 |
53 Kč | |
| 20 | 47032020000 THRUST WASHER 20X32X2 |
61 Kč | |
| 26 | 47032026000 DAMPING ELEMENT 85 SX 2003 |
61 Kč | |
| 28 | 47032028000 RETAINING PLATE 85 SX 2003 |
163 Kč | |
| 54 | 47032054000 PRESSURE PLATE 85 SX 2003 |
714 Kč | |
| 58 | 47032058000 PUSH ROD 85 SX 2003 |
268 Kč | |
| 61 | 47132061044 OUTPUT CYLINDER CPL. |
4 347 Kč | |
| 62 | 47132066000 PISTON CPL. |
716 Kč | |
| 63 | 47013021000 CAP FOR BLEEDER SCREW |
116 Kč | |
| 64 | 47013085000 BLEEDER SCREW M8X1 |
178 Kč | |
| 65 | 0770031018 O-RING 31,47X1,78 |
20 Kč | |
| 68 | 47032068000 BALL D=6MM 85 SX 2003 |
49 Kč | |
| 70 | 0015060163 HH COLLAR SCREW M 6X16 WS=8 |
17 Kč | |
| 71 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 98 | 47032098000 AXIAL NEEDLE BEARING 85 SX 03 |
183 Kč | |
| 99 | 47032010010 CLUTCH KIT 105/85 SX 03-14 |
3 060 Kč |
