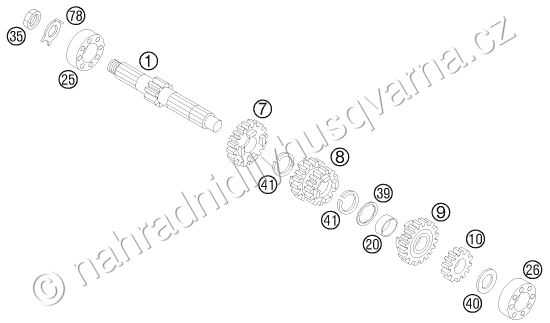

Díly pro TRANSMISSION I - MAIN SHAFT
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 47033001000 MAIN SHAFT 11-T 85 SX 2003 |
3 478 Kč | |
| 7 | 47033007000 IDLER GEAR 5TH G. 21-T 03 |
1 944 Kč | |
| 8 | 47033008000 SLID. GEAR 3RD/4TH G. 16/19-T |
2 580 Kč | |
| 9 | 47033009100 IDLER GEAR 6TH G. 20-T 05 |
1 989 Kč | |
| 10 | 47033010000 SOLID GEAR 2ND G. 14-T 03 |
1 174 Kč | |
| 20 | 47033020000 IDLER GEAR BUSHING 05 |
578 Kč | |
| 25 | 46033028000 GROOVED BALL BEARING 20X42X12 |
561 Kč | |
| 26 | 47033026000 BALL BEARING 16X35X8 |
469 Kč | |
| 35 | 46030029000 HH NUT 14X1,25X7 WS=22 |
72 Kč | |
| 39 | 47033039000 STOP DISK 05 |
190 Kč | |
| 40 | 47033041000 STOP DISC 16X26X1 |
126 Kč | |
| 41 | 47033096000 AXIAL CIRCLIP 19 SW |
21 Kč | |
| 78 | 46030078000 LOCKING PLATE D=14MM |
66 Kč |
