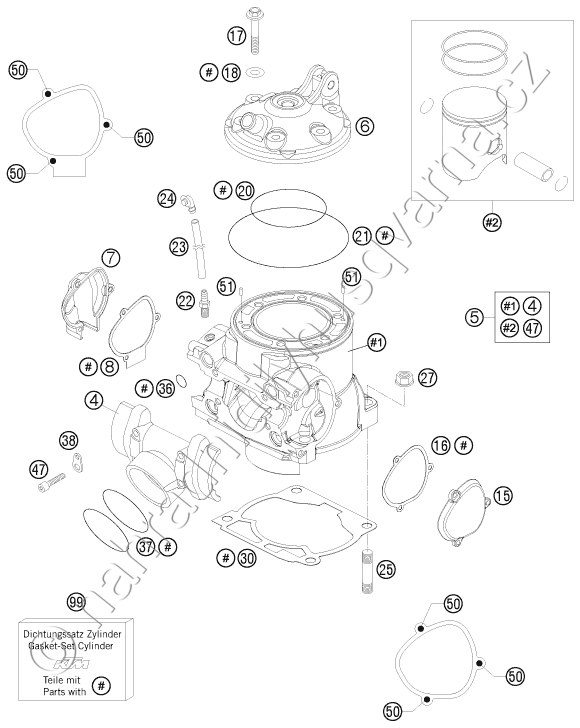

Díly pro CYLINDER, CYLINDER HEAD
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 4 | 54837001200 INTERMEDIATE FLANGE 250/300 07 |
6 178 Kč | |
| 5 | 54830038400 CYLINDER + PISTON KPL. 2011 |
21 276 Kč | |
| 6 | 54830206100 CYLINDER HEAD 250 XC |
3 731 Kč | |
| 7 | 5483700700015 CONTROL COVER R/S 09 |
411 Kč | |
| 8 | 54837008000 GASKET FOR CONTROL COVER R/S |
113 Kč | |
| 15 | 5483700500015 CONTROL COVER L/S 09 |
411 Kč | |
| 16 | 54837006000 GASKET FOR CONTROL COVER L/S |
113 Kč | |
| 17 | 54830079000 COLLAR SCREW M 8X35 WS=13 |
57 Kč | |
| 18 | 56530080000 CU-SEAL RING 8 X 16 X 1 |
25 Kč | |
| 20 | 0770730020 O-RING 73,00X2,00 VITON |
63 Kč | |
| 21 | 0770105020 O-RING 105,00X2,00 07 |
79 Kč | |
| 22 | 58336020090 VACUUM CONNECTION M 6X1 |
116 Kč | |
| 23 | 50335030001 PVC-HOSE 6X9 |
92 Kč | |
| 24 | 50303089000 ANGEL PIECE \'97 |
50 Kč | |
| 25 | 0835100351 STUD DIN0835-M10X35 |
52 Kč | |
| 27 | 54630044000 COLLAR NUT M10 WS=13 |
29 Kč | |
| 30 | 54830030002 GASKET CYLINDER BASE 0,2MM 03 |
94 Kč | |
| 30 | 54830030004 GASKET CYLINDER BASE 0,4MM 03 |
94 Kč | |
| 30 | 54830030005 GASKET CYLINDER BASE 0,5MM 03 |
94 Kč | |
| 30 | 54830030075 GASKET CYLINDER BASE 0,75MM 03 |
134 Kč | |
| 36 | 0770116241 O-RING 11,3 X2,4 SILICON |
33 Kč | |
| 37 | 0770440030 O-RING 44,00X3,00 VITON |
58 Kč | |
| 38 | 51005074000 RETAINING PLATE |
31 Kč | |
| 47 | 0912060303 AH SCREW DIN0912-M 6X30 |
23 Kč | |
| 50 | 58605083014 SCREW M5X14 TORX 25 07 |
34 Kč | |
| 51 | 0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8 |
23 Kč | |
| 99 | 54830097100 GASKET SET CYL. 250 07-14 |
823 Kč |
