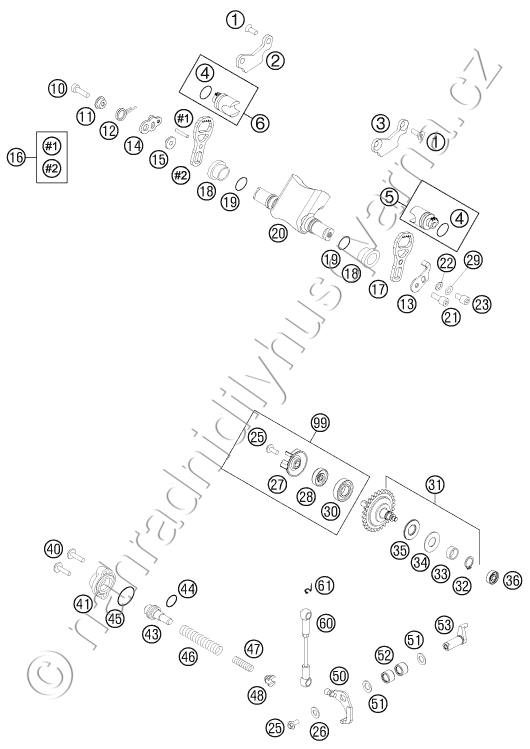

Díly pro EXHAUST CONTROL
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 0019050106S HEX LOBE COUNTERSUNC SCREW M5X10 - 10.9 |
18 Kč | |
| 2 | 54837062000 RETAINING PLATE R/S 07 |
178 Kč | |
| 3 | 54837063000 RETAINING PLATE L/S 07 |
178 Kč | |
| 4 | 0770160021 O-RING 16,00X2,00 VITON |
25 Kč | |
| 5 | 54837061044 CONTR.VALVE L/S CPL. 07 |
937 Kč | |
| 6 | 54837061144 CONTR.VALVE R/S CPL. 07 |
937 Kč | |
| 10 | 0912060203 AH SCREW DIN0912-M 6X20 |
17 Kč | |
| 11 | 54637067000 SPRING SLEEVE |
60 Kč | |
| 12 | 54637066000 OVERLOAD SPRING |
61 Kč | |
| 13 | 54637085300 RETAIN.PLATE CONTROL FLAP \'92 |
69 Kč | |
| 14 | 54637065000 CONTROL LEVER WITH BALL TYPE |
419 Kč | |
| 15 | 54637068100 BUSHING SLEEVE |
126 Kč | |
| 16 | 54837064144 GEAR SEGMENT CPL. RIGHT 07 |
571 Kč | |
| 17 | 54837064150 GEAR SEGMENT L/S 250 07 |
658 Kč | |
| 18 | 54737019000 BEAR. SLEEVE F.CONTROL FLAP\'97 |
124 Kč | |
| 19 | 0770150151 O-RING 15,00X1,50 VITON |
23 Kč | |
| 20 | 54837020200 CONTROL CLAP 250 07 |
1 759 Kč | |
| 21 | 0912060163 AH SCREW DIN0912-M 6X16 |
17 Kč | |
| 22 | 54637056100 WASHER 6,5X11X2 |
21 Kč | |
| 23 | 0912060083 AH SCREW DIN0912-M 6X 8 |
18 Kč | |
| 25 | 0014050123 HH COLLAR SCREW M 5X12 WS=6 |
29 Kč | |
| 26 | 0349000050 WASHER DIN7349-5X15X2 |
17 Kč | |
| 27 | 54835005000 WATER PUMP WHEEL 07 |
66 Kč | |
| 28 | 0760082472 SHAFT SEAL RING 8X24X7 A DUO |
61 Kč | |
| 29 | 0137060003 SPRING WASHER DIN 137 B - 6 |
17 Kč | |
| 30 | 0625160020 BALL BEARING 16002 C3 |
284 Kč | |
| 31 | 54837050044 CENTRIFUGAL TIMER CPL. 250/300 |
2 588 Kč | |
| 32 | 0471120010 RETAINING RING DIN 471 12X1 |
4 Kč | |
| 33 | 54837054000 DISTANCE BUSH. CENTRIFUG.TIMER |
116 Kč | |
| 34 | 54637071010 AXIAL WASHER AS1226 |
53 Kč | |
| 35 | 54637097200 AXIAL NEEDLE BEARING AXK 1226 |
150 Kč | |
| 36 | 54637098100 BALL BEARING 626LLBC3/5K |
190 Kč | |
| 40 | 0014050203 HH COLLAR SCREW M 5X20 WS=6 |
55 Kč | |
| 41 | 54637070100 COVER LID 250-380\'98 |
265 Kč | |
| 43 | 54837075000 SPRING GUIDE 250/300 |
255 Kč | |
| 44 | 0770021120 O-RING 12,37X2,62 NBR70 |
21 Kč | |
| 45 | 0770240020 O-RING 24,00X2,00 NBR70 |
18 Kč | |
| 46 | 54837069000 ADJUST. SPRING 2003 |
63 Kč | |
| 47 | 54637072300 AUXILIARY SPRING MID., YELLOW |
41 Kč | |
| 47 | 54837072000 AUXILIARY SPRING SOFT, RED |
36 Kč | |
| 47 | 54837072100 AUXILIARY SPRING HARD, GREEN |
42 Kč | |
| 48 | 54637071200 SPRING INSERT |
214 Kč | |
| 50 | 47237056000 ANGLE LEVER |
767 Kč | |
| 51 | 0988101610 SHIM WASHER DIN988 10X16X1 |
15 Kč | |
| 52 | 0618101410 NEEDLE SLEEVE HK 1010 10X14X10 |
82 Kč | |
| 53 | 54837057000 CONTROL LEVER 03 |
761 Kč | |
| 60 | 54637095444 CONNECTING ROD CPL. |
326 Kč | |
| 61 | 50237195055 SECURING DIN-71805-S-8 |
29 Kč | |
| 99 | 54835055110 WATER PUMP REP. KIT SX 07-14 |
419 Kč |
