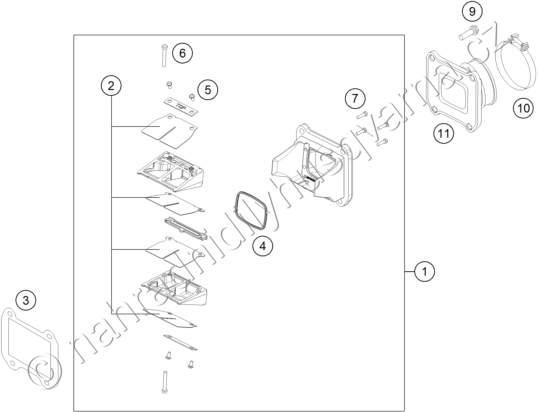

Díly pro REED VALVE CASE
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 54830151044 REED VALVE ASSY CPL. |
4 762 Kč | |
| 2 | 54830052344 REED VALVE SET |
2 328 Kč | |
| 3 | 54830062200 GASKET REED VALVE CASE |
63 Kč | |
| 4 | 54830153050 GASKET SUPPORTING PLATE |
464 Kč | |
| 5 | 0081030063 EJOT DELTA PT SCREW 30X6 |
17 Kč | |
| 6 | 0081035253 EJOT DELTA PT SCREW 35X25 |
17 Kč | |
| 7 | 0081030124 EJOT DELTA PT SCREW 30X12 |
17 Kč | |
| 9 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 10 | 54330061000 CLAMP 52/12 GEMI |
122 Kč | |
| 11 | 54830050000 INTAKE FLANGE V-FORCE 04 |
570 Kč |
