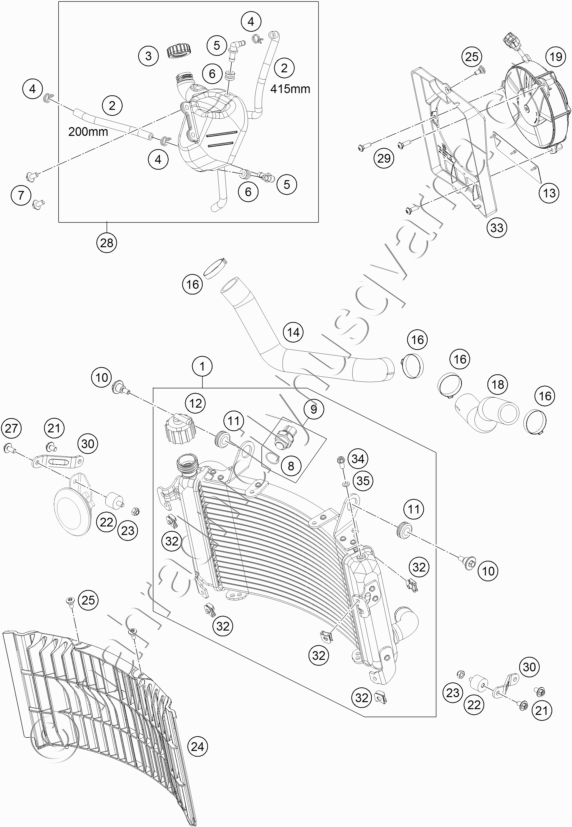

Díly pro COOLING SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 27035010000 RADIATOR |
13 675 Kč | |
| 2 | 60035067001 HOSE 6X10 EPDM 03 |
154 Kč | |
| 3 | 60335066044 LATCH, COMPENS. TANK CPL. |
103 Kč | |
| 4 | 58007117000 YDNAC-CLAMP 10107 10MM |
21 Kč | |
| 5 | 60035068000 ANGLE CONNECTION EXPANS. TANK |
50 Kč | |
| 6 | 60035069000 RUBBER GROMMET 6X9X13MM 04 |
87 Kč | |
| 7 | 0026060136 COLLAR SCREW M6X13 ISA30 |
18 Kč | |
| 8 | 0770017015 O-RING 17X1,5 NB75 |
18 Kč | |
| 9 | 60035045000 THERMOSWITCH LC8 102DG \'03 |
642 Kč | |
| 10 | 60035001000 SPECIAL SCREW M6X21 WS=8 |
71 Kč | |
| 11 | 41001052000 RUBBER SLEEVE D=12MM |
57 Kč | |
| 12 | 62535009000 RADIATOR CAP 1,4 BAR |
416 Kč | |
| 13 | 62635044050 FAN CLACK RUBBER 08 |
94 Kč | |
| 14 | 27035025000 COOLING HOSE R/S |
395 Kč | |
| 16 | 00050325706 VARIABLE ONE-EAR CLAMP 32,5MM |
65 Kč | |
| 18 | 27035024000 HOSE |
260 Kč | |
| 19 | 62635041000 VENTILATOR |
2 927 Kč | |
| 21 | 0024060106 HH COLLAR SCREW M6X10 TX30 |
29 Kč | |
| 22 | 43205062100 SILENTBLOC 20X15-M6X10-(1) |
106 Kč | |
| 23 | 0985060003 SELF LOCK. NUT DIN0985-M 6 |
20 Kč | |
| 24 | 27035140000 RADIATOR GUARD |
573 Kč | |
| 25 | 69008021160 SPECIAL SCREW M5X12 |
52 Kč | |
| 27 | 0024060136 HH COLLAR SCREW M6X13 TX30 |
29 Kč | |
| 28 | 27035065000 EXPANSION TANK |
975 Kč | |
| 29 | 0081050161 EJOT PT SCREW K50X16 1451 |
20 Kč | |
| 30 | 76535001000 RETAINING PLATE RADIATOR 08 |
413 Kč | |
| 32 | 54603048200 RANGE CHANGE METAL NUT M5 |
52 Kč | |
| 33 | 27035044000 FAN COVER |
195 Kč | |
| 34 | 0025060126 HH COLLAR SCREW M6X12 TX30 |
29 Kč | |
| 35 | 60035048000 ALU-GASKET 6X10X1.5 |
33 Kč |
