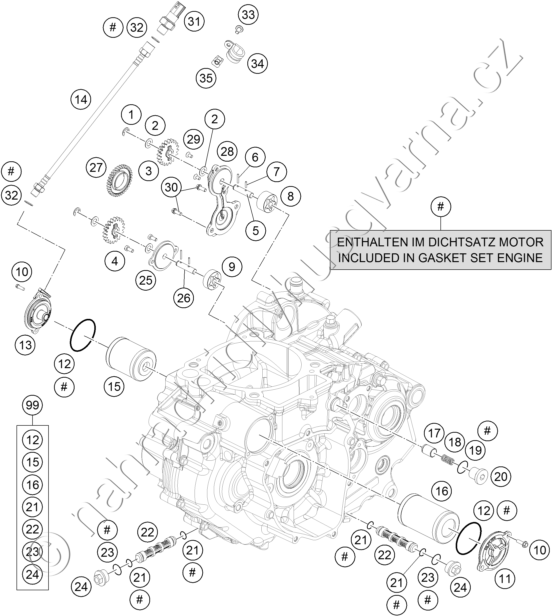

Díly pro LUBRICATING SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 0799060000 TAB WASHER DIN6799-RS 6,0 |
17 Kč | |
| 2 | 58038007755 STOP DISK 8,1 X 15 X 0,5 |
21 Kč | |
| 3 | 75038001020 OIL PUMP GEAR 20-T |
76 Kč | |
| 4 | 07984050100 AH SCREW DIN7984 M5X10 A2 |
21 Kč | |
| 5 | 75038002000 OIL PUMP SHAFT 07 |
228 Kč | |
| 6 | 0402251980 NEEDLEROL.DIN5402 NRA 2,5X19,8 |
20 Kč | |
| 7 | 0402251180 NEEDLE ROLLER DIN5402 2,5X11,8 |
19 Kč | |
| 8 | 77038011100 OIL PUMP ROTOR COMPL. 15MM |
829 Kč | |
| 9 | 59038011110 OIL PUMP ROTOR COMPL. 10MM |
89 Kč | |
| 10 | 0025050166 HH COLLAR SCREW M5X16 TX30 |
20 Kč | |
| 11 | 75038041200 OIL FILTER COVER |
135 Kč | |
| 12 | 07700390261 O-RING 39,34X2,62 |
18 Kč | |
| 13 | 76038041000 OILFILTER COVER |
522 Kč | |
| 14 | 76538034000 OIL PIPE |
1 516 Kč | |
| 15 | 75038046100 OIL FILTER SHORT |
129 Kč | |
| 16 | 58038005100 OIL FILTER LONG |
195 Kč | |
| 17 | 58038028000 VALVE PISTON D=10MM |
126 Kč | |
| 18 | 58538023000 OIL PRES.SPRING 5 BAR RED 2001 |
185 Kč | |
| 19 | 58038022000 CU-SEAL RING DIN7603-12X18X1,5 |
28 Kč | |
| 20 | 0908120153 THREADED PLUG DIN 908 M12X1.5 |
87 Kč | |
| 21 | 07701250151 O-RING 12,5X1,5 VITON V75 |
76 Kč | |
| 22 | 59038016100 OIL SCREEN |
278 Kč | |
| 23 | 0770020170 O-RING 17,17X1,78 GLO |
18 Kč | |
| 24 | 59038017100 PLUG M20X1,5 WS=13 |
252 Kč | |
| 25 | 75038003000 OIL PUMP COVER 07 |
337 Kč | |
| 26 | 75038004000 OIL PUMP SHAFT 07 |
228 Kč | |
| 27 | 75032050001 OIL PUMP DRIVE WHEEL 07 |
57 Kč | |
| 28 | 76038003000 OIL PUMP COVER |
542 Kč | |
| 29 | 0019050163S INT. TORX FLAT HEAD M5X16 8.8 |
26 Kč | |
| 30 | 0025060166S HH COLLAR SCREW M6X16 TX30 SL |
29 Kč | |
| 31 | 61238091000 OIL PRESSURE SWITCH \'\'BITRON\'\' |
389 Kč | |
| 32 | 0603100141 SEALING RING DIN 7603 10X14X1 |
27 Kč | |
| 33 | 58605083014 SCREW M5X14 TORX 25 07 |
34 Kč | |
| 34 | 49007439000 CLAMP RSGU 15/12 |
69 Kč | |
| 35 | 69008021080 CLIP NUT M5 |
47 Kč | |
| 99 | 75038046110 OILFILTER SERVICEKIT 690 12-14 |
1 173 Kč |
