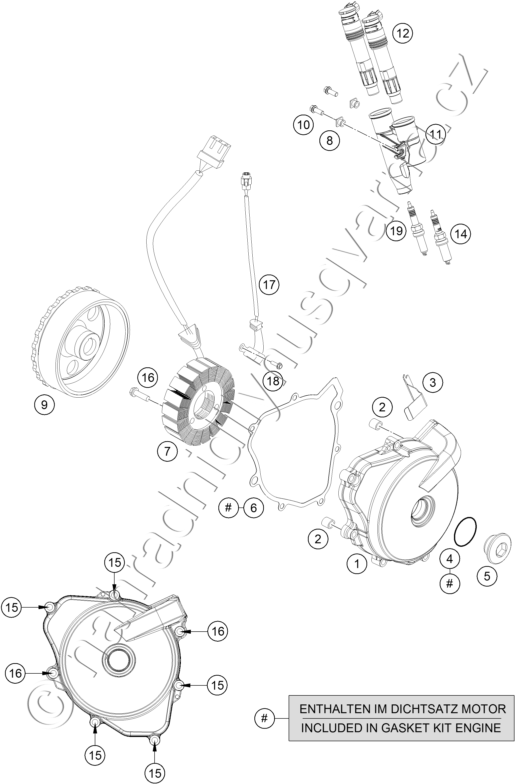

Díly pro IGNITION SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 75030002100KA IGNITION COVER |
1 876 Kč | |
| 2 | 49030090100 DOWEL 9,8 X7X10 |
52 Kč | |
| 3 | 60039040020 GENERATOR LINE BRACKET |
66 Kč | |
| 4 | 07700240251 O-RING 24.00X2.50 VITON |
39 Kč | |
| 5 | 6003009400030 THREADED PLUG M24X1.5 PA 6.6 |
63 Kč | |
| 6 | 75030040000 IGNITI.COVER GASKET 07 |
116 Kč | |
| 7 | 75039004100 STATOR |
5 838 Kč | |
| 8 | 76036075050 INSET |
69 Kč | |
| 9 | 75039005200 ROTOR |
8 891 Kč | |
| 10 | 0025060166 HH COLLAR SCREW M6X16 TX30 |
28 Kč | |
| 11 | 76636075000 STICKCOIL HOLDER |
252 Kč | |
| 12 | 76039006000 STICK COIL |
2 075 Kč | |
| 14 | 60439093000 SPARK PLUG M12X1.25 |
504 Kč | |
| 15 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 16 | 0025060306 HH COLLAR SCREW M6X30 TX30 |
29 Kč | |
| 17 | 75039034000 PULSER COIL |
1 763 Kč | |
| 18 | 59009062016 SPECIAL SCREW M6X16 WS=8 10.9 |
31 Kč | |
| 19 | 60439094000 SPARK PLUG M10X1 |
504 Kč |
