Díly pro ENGINE CASE

Číslo dílu
na schématu
Kód dílu
Název dílu
Cena za kus
vč. DPH
Doporučený
počet
1 79430500044
ENGINE CASE CPL. EXC
32 415 Kč
2 79433053150
BRONZE BUSH
158 Kč
3 60030063070
OIL JET 70 M5
124 Kč
4 58030010200
SCREW IN NOZZLE M20X1,5
166 Kč
5 75030010100
CASE BUSH
195 Kč
6 54830027000
DOWEL 21X12 03
103 Kč
7 59030023000
DOWEL SLEEVE 6X8X11.5
82 Kč
8 51030026100
DOWEL 17 X 13 X 12
89 Kč
9 0770035020
O-RING 3,5X2,00 NBR
4 Kč
10 81230064000
OIL JET ANGLED 70
212 Kč
11 0912040103
AH.SCREW DIN0912-M 4X10
20 Kč
12 58038022000
CU-SEAL RING DIN7603-12X18X1,5
28 Kč
13 58030021100
OILDRAIN PLUG WITH MAGNET
196 Kč
14 0906100100
PIPE PLUG DIN 906 M10X1
71 Kč
15 59030296000
SCREW PLUG
151 Kč
16 78033032000
TAB WASHER BEARING MAIN SHAFT
81 Kč
17 78033132000
TAB WASHER BEARING COUNT.SHAFT
84 Kč
18 0019050121S
INT. TORX FLAT HEAD M5X12 T25
28 Kč
19 75030085000
RETAINING PLATE F. CS BEARING
86 Kč
20 0025060606
HH COLLAR SCREW M6X60 TX30
29 Kč
21 0025060706
HH COLLAR SCREW M6X70 TX30
29 Kč
22 0025060806
HH COLLAR SCREW M6X80 TX30
29 Kč
23 60030063050
OIL JET 50 M5
159 Kč
99 79430199000
ENGINE GASKET KIT 450 EXC-F 17
3 757 Kč

Další schémata

BALANCER SHAFT BALANCER SHAFT CLUTCH CLUTCH CLUTCH COVER CLUTCH COVER COOLING SYSTEM COOLING SYSTEM CRANKSHAFT, PISTON CRANKSHAFT, PISTON CYLINDER CYLINDER CYLINDER HEAD CYLINDER HEAD ELECTRIC STARTER ELECTRIC STARTER ENGINE CASE ENGINE CASE IGNITION SYSTEM IGNITION SYSTEM LUBRICATING SYSTEM LUBRICATING SYSTEM SHIFTING MECHANISM SHIFTING MECHANISM THROTTLE BODY THROTTLE BODY TIMING DRIVE TIMING DRIVE TRANSMISSION I - MAIN SHAFT TRANSMISSION I - MAIN SHAFT TRANSMISSION II - COUNTERSHAFT TRANSMISSION II - COUNTERSHAFT VALVE DRIVE VALVE DRIVE WATER PUMP WATER PUMP

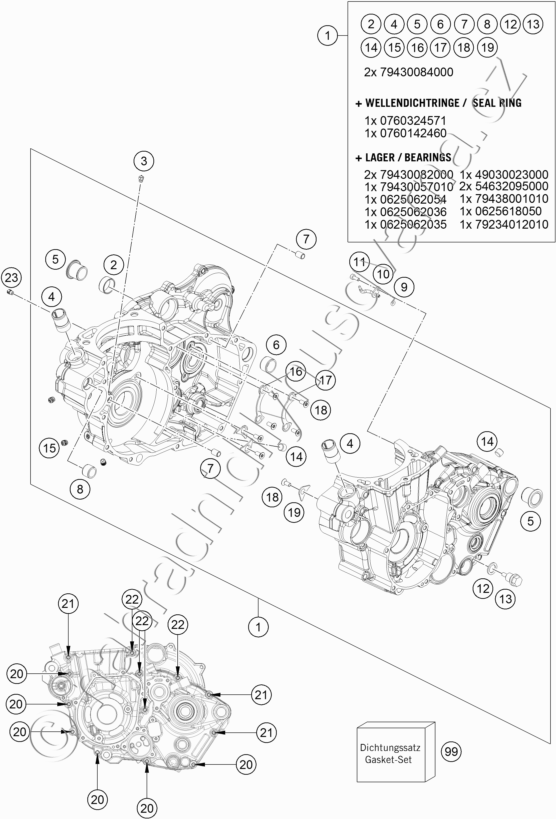

ENGINE CASE

Zvětšit schéma ENGINE CASE
ENGINE CASE
