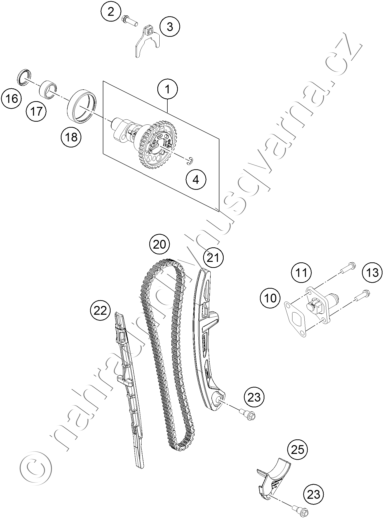

Díly pro TIMING DRIVE
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 79436510044 CAMSHAFT CPL. WITH DECO |
5 400 Kč | |
| 2 | 0025060206S HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 3 | 79436012033 BRACKET CAM SHAFT |
239 Kč | |
| 4 | 0799050000 TAB WASHER DIN6799 RS5 |
20 Kč | |
| 10 | 59036003050 GASKET TIMING CHAIN TENSIONER |
84 Kč | |
| 11 | 59036003000 TIMINGCHAIN TENSIONER CPL.RAC. |
972 Kč | |
| 13 | 0025060166 HH COLLAR SCREW M6X16 TX30 |
28 Kč | |
| 16 | 0760182442 SHAFT SEAL RING 18X24X4 |
66 Kč | |
| 17 | 0618182412 NEEDLE BEAR.HK1812 18/24/12 05 |
143 Kč | |
| 18 | 0618404712 NEEDLE SLEEVE HK4012B40X47X12 |
201 Kč | |
| 20 | 77036013100 TIMING CHAIN 108 ROLLS |
1 357 Kč | |
| 21 | 79436002000 DRIVE CHAIN TENSIONING RAIL |
199 Kč | |
| 22 | 79436001000 DRIVE CHAIN GUIDE |
166 Kč | |
| 23 | 77236001160 BUSHING SCREW M6 |
156 Kč | |
| 25 | 79436018000 FAIL SAFE |
98 Kč |
