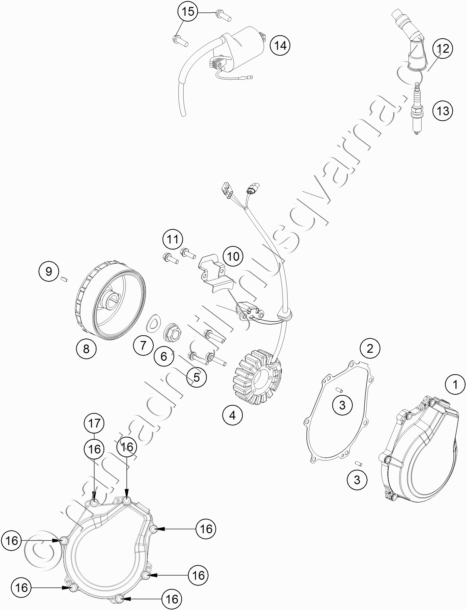

Díly pro IGNITION SYSTEM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 79430702000KA IGNITION COVER |
1 405 Kč | |
| 2 | 79430040000 IGNITION COVER GASKET |
177 Kč | |
| 3 | 0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8 |
23 Kč | |
| 4 | 79239104000 STATOR |
4 425 Kč | |
| 5 | 0025050256 HH COLLAR SCREW M5X25 ISA30 |
20 Kč | |
| 6 | 49030021000 COLLAR NUT M12X1 R/S |
100 Kč | |
| 7 | 0137120000 SPRING WASHER DIN0137-B12 |
17 Kč | |
| 8 | 78039205000 ROTOR EXC 08 |
6 543 Kč | |
| 9 | 0888030037 WOODRUFF KEY DIN6888-3X3,7 |
21 Kč | |
| 10 | 79430502050 CABLE BRACKET |
353 Kč | |
| 11 | 0025050166 HH COLLAR SCREW M5X16 TX30 |
20 Kč | |
| 12 | 78039090100 SPARK PLUG CONNECTOR |
892 Kč | |
| 13 | 77839093000 SPARK PLUG NGK LMAR9AI-10 |
735 Kč | |
| 14 | 58439006000 IGNITIONCOIL IG3826 KOKUSAN\'96 |
1 278 Kč | |
| 15 | 0026060186 COLLAR SCREW M6X18 ISA30 |
18 Kč | |
| 16 | 0025060256 HH COLLAR SCREW M6X25 TX30 |
29 Kč | |
| 17 | 0603061001 CU-SEAL RING DIN7603-6X10X1 |
20 Kč |
